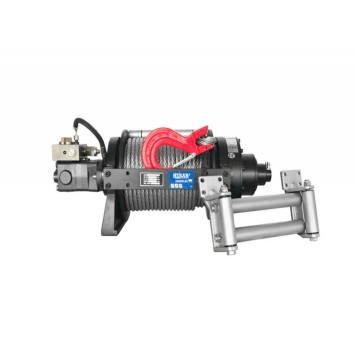

BST H 20000 Lbs
zł12,570.00
VAT included
EAN13: 5904024534297
A hydraulic winch is an advanced tool designed for work in extreme conditions that require high pulling strength and precise control over the moved loads. Thanks to the use of hydraulic drive, this winch offers impressive pulling power, making it an ideal solution for use in construction, heavy industry, and workshops. The winch ensures efficiency, reliability, and safety in tough working conditions, providing fast and effective movement of loads.
Hydraulic drive – provides high power that is smoothly and precisely controlled, ensuring effectiveness in every application.
High-quality materials – a corrosion-resistant steel construction that ensures the longevity of the winch.
| BST H 20000lbs | Technical specifications | ||
| Pulling rate | 9072 kg | ||
| Motor displacement | 100ml/r | ||
| Oil flow | 15～75L/min | ||
| Pressure | 17,5Mpa | ||
| Gear | 2 -stage planetary | ||
| Gear ratio | 39:1 | ||
| Rope | 48m x 14 mm | ||
| Fairlead | 4-ways rollers fairlead | ||
| Net weight | 163 kg | ||
| Mounting bolt pattern | 431mm 64mm 192mm | ||
| Dimensions | (L x W x H) 784mm390mm320mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 4000 | 8000 | 15000 | 20000 |
| Kgs | 0 | 1814 | 3629 | 6804 | 9072 | |
| Line speed | m/min | 1,8 | 3,6 | 6,0 | 7,2 | 9,0 |
| Pressure | PSI | 362,6 | 608,1 | 1232,8 | 2030,5 | 2538,1 |
| Oil flow | l/min | 15 | 30,0 | 50,0 | 60,0 | 75,0 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 20000 | 16889 | 14615 | 12881 | |
| Kgs | 9072 | 7661 | 6629 | 5843 | ||
| Cable capacity per layer | M | 10,3 | 22,5 | 35,9 | 48,0 | |
Data sheet
- Rodzaj liny
- Lina stalowa
- Siła uciągu
- 20000lbs (9071kg)
- Producent
- Kwella sp. z o.o.
- Importer
- Kwella sp. z o.o.
