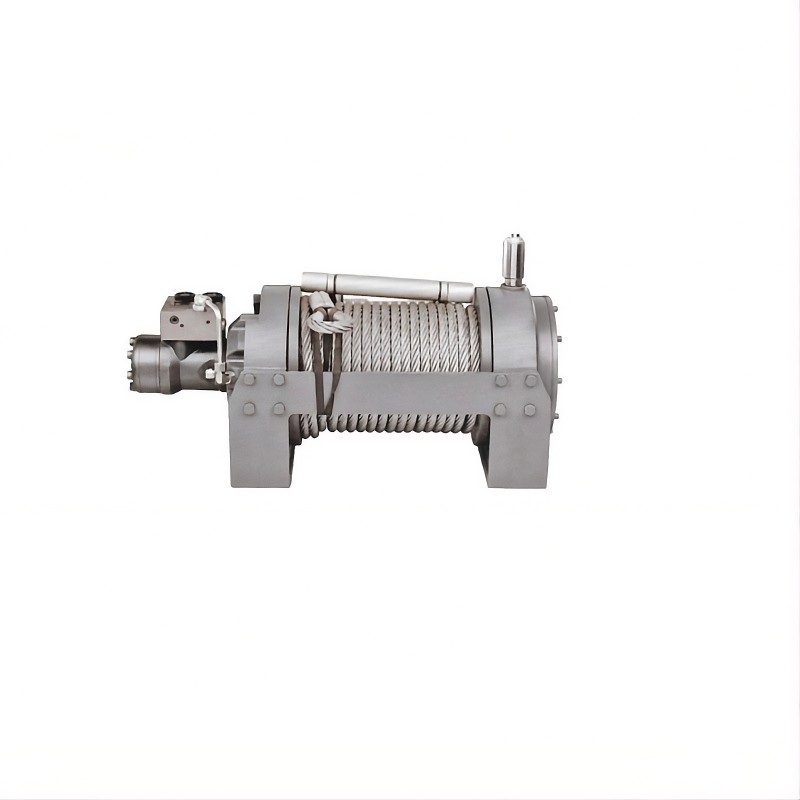

BST HS 080Lb
12.900,00 zł
Bruttopreis
EAN13: 5904024534327
| BST HS 080Lb | Technical specifications | ||
| Motor displacement | 17637 lbs (8000kg) | ||
| Oil flow | 15ď˝50L/min | ||
| Pressure | 15Mpa | ||
| Gear | 2 -stage planetary | ||
| Gear ratio | 38:1 | ||
| Rope | 32m x 14 mm 8-M14 | ||
| Net weight | 138 kg | ||
| Mounting bolt pattern | 400mmx220mm 400mmx120mm | ||
| Dimensions | (L x W x H) 665mm226mm262mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 4409 | 8818 | 1328 | 17637 |
| Kg | 0 | 2000 | 4000 | 6000 | 8000 | |
| Line speed | m/min | 1,8 | 2,5 | 3,2 | 4 | |
| Pressure | PSI | 290,1 | 609,2 | 1131,3 | 1508 | 1885,4 |
| Oil flow | l/min | 5 | 10 | 20 | 30 | 60 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | ||
| Rated line pull per layer | Lbs | 17637 | 1498 | 1302 | |
| Kg | 8000 | 6795 | 5906,0 | ||
| Cable capacity per layer | m | 9 | 20 | 32 | |
