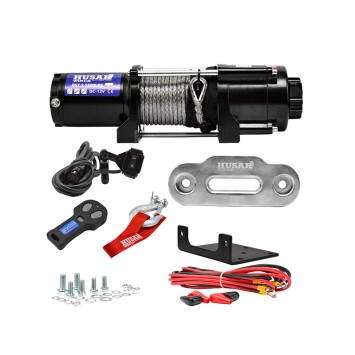

BST S5500 Lbs Synthetisches Seil
1.479,00 zł
Bruttopreis
EAN13: 5904024534532
| BST 5500lbs | Technical specifications | |||
| Pull capacity(single line) | 5500lbs / 2495 kg | |||
| Motor 12V | 2.5 kw / 3,4 hp | |||
| Controls | Wired / wireless remote control | |||
| Gear ratio | 166:1 | |||
| Brake | Automatic | |||
| Rope | 14,5 m 6 mm | |||
| Fairlead | hawse fairlead | |||
| Net weight | 15,5 kg | |||
| Mounting bolt pattern | 168mm x 76,2mm | |||
| Dimensions | (L x W x H) 408mm 125mm x 123mm | |||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 2000 | 3000 | 4500 | 5500 |
| Kgs | 0 | 1523 | 1750 | 2057 | 2495 | |
| Line speed | M/min | 3,9 | 2,6 | 2,1 | 1,4 | 1,1 |
| Motor current | Amps | 28 | 120 | 160 | 220 | 280 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 5500 | 4535 | 3858 | 3357 | |
| Kgs | 2495 | 2057 | 1750 | 1523 | ||
| Cable capacity per layer | M | 3,7 | 8 | 12,8 | 14,5 | |
